Visualizations#
Views of data primarily taken from the shard redux<yyyy> files/folders.
Bundle plot#
Select sensor in the UI; plus NOON/MIDNIGHT.
# Jupyter cell version of the bundle plot visualization
# - dynamic sensor selection
# - midnight / noon annotation
# - sensor count
# - 7/11 scalar (missing PAR, pH, pCO2, nitrate)
# - 0/4 vector (no vel, spec.irr., oa, ba)
import matplotlib.pyplot as plt
import xarray as xr
from pathlib import Path
import ipywidgets as widgets
from IPython.display import display
import numpy as np
from datetime import datetime, timedelta
import pandas as pd
import pytz
def get_input_with_default(prompt, default):
"""Get user input with default value."""
response = input(f"{prompt} ").strip()
return response if response else str(default)
# Oregon Slope Base timezone info
OREGON_TZ = pytz.timezone('America/Los_Angeles')
# Sensor configuration with colors that work well on white background
SENSORS = {
'temperature': {'low': 7.0, 'high': 20.0, 'units': '°C', 'color': 'red'},
'salinity': {'low': 32.0, 'high': 34.0, 'units': 'PSU', 'color': 'blue'},
'density': {'low': 1024.0, 'high': 1028.0, 'units': 'kg/m³', 'color': 'black'},
'dissolvedoxygen': {'low': 50.0, 'high': 300.0, 'units': 'µmol/kg', 'color': 'darkblue'},
'cdom': {'low': 0.0, 'high': 2.5, 'units': 'ppb', 'color': 'brown'},
'chlora': {'low': 0.0, 'high': 1.5, 'units': 'µg/L', 'color': 'green'},
'backscatter': {'low': 0.0, 'high': 0.002, 'units': 'm⁻¹sr⁻¹', 'color': 'gray'}
}
# Get year range
start_year = int(get_input_with_default("Start year (default 2015):", "2015"))
end_year = int(get_input_with_default("End year (default 2016):", "2016"))
print(f"\nScanning redux folders from {start_year} to {end_year}...")
available_years = []
for year in range(start_year, end_year + 1):
redux_dir = Path(f"~/ooi/redux/redux{year}").expanduser()
if redux_dir.exists():
profile_count = len(list(redux_dir.glob("*.nc")))
if profile_count > 0:
print(f" redux{year}: {profile_count} profiles")
available_years.append(year)
if not available_years:
print("No years found")
else:
print(f"\nUsing years: {available_years}")
# Hardcoded to 2 sensors
num_sensors = 2
# Load profile files for all sensors
all_profile_files = {}
for sensor in SENSORS.keys():
profile_files = []
for year in available_years:
redux_dir = Path(f"~/ooi/redux/redux{year}").expanduser()
year_files = sorted(list(redux_dir.glob(f"*_{sensor}_*.nc")))
profile_files.extend(year_files)
all_profile_files[sensor] = profile_files
print(f"{sensor}: {len(profile_files)} profiles")
# Use the sensor with most profiles for indexing
max_profiles = max(len(files) for files in all_profile_files.values())
# Annotation data
annotation_df = None
annotation_enabled = False
if max_profiles == 0:
print("No profiles found")
else:
def extract_profile_info(filename):
"""Extract year, day, and profile number from filename."""
parts = filename.stem.split('_')
year = int(parts[4])
doy = int(parts[5])
profile_idx = int(parts[6])
profile_num = int(parts[7])
return year, doy, profile_idx, profile_num
def check_time_gap(files, start_idx, end_idx):
"""Check if there's a >2 day gap between consecutive profiles."""
if len(files) == 0 or start_idx >= len(files):
return False
for i in range(start_idx, min(end_idx - 1, len(files) - 1)):
parts1 = files[i].stem.split('_')
parts2 = files[i + 1].stem.split('_')
year1, doy1 = int(parts1[4]), int(parts1[5])
year2, doy2 = int(parts2[4]), int(parts2[5])
date1 = datetime(year1, 1, 1) + timedelta(days=doy1 - 1)
date2 = datetime(year2, 1, 1) + timedelta(days=doy2 - 1)
if (date2 - date1).days > 2:
return True
return False
def check_noon_midnight(ds):
"""Check if profile spans local noon or midnight."""
try:
start_time = pd.to_datetime(ds.time.values[0])
end_time = pd.to_datetime(ds.time.values[-1])
peak_time = pd.to_datetime(ds.time.values[len(ds.time.values)//2])
start_local = start_time.tz_localize('UTC').astimezone(OREGON_TZ)
end_local = end_time.tz_localize('UTC').astimezone(OREGON_TZ)
peak_local = peak_time.tz_localize('UTC').astimezone(OREGON_TZ)
window_start = start_local - timedelta(minutes=30)
window_end = end_local + timedelta(minutes=30)
local_midnight = start_local.replace(hour=0, minute=0, second=0, microsecond=0)
local_noon = start_local.replace(hour=12, minute=0, second=0, microsecond=0)
if window_start <= local_midnight <= window_end:
return 'MIDNIGHT', peak_local
if window_start <= local_noon <= window_end:
return 'NOON', peak_local
except Exception as e:
print(f"Error in check_noon_midnight: {e}")
return None, None
def plot_bundle(sensor1, sensor2, low1, high1, mode1, low2, high2, mode2, nProfiles, index0):
"""Plot a bundle of consecutive profiles."""
if nProfiles == 0:
plt.figure(figsize=(10.2, 6.8))
plt.text(0.5, 0.5, 'Select nProfiles > 0', ha='center', va='center', transform=plt.gca().transAxes)
plt.show()
return
start_idx = index0 - 1
end_idx = min(start_idx + nProfiles, max_profiles)
if start_idx >= max_profiles:
plt.figure(figsize=(10.2, 6.8))
plt.text(0.5, 0.5, f'Index {index0} exceeds available profiles', ha='center', va='center', transform=plt.gca().transAxes)
plt.show()
return
# Get selected sensors
selected_sensors = [sensor1, sensor2]
sensor_configs = [
{'name': sensor1, 'low': low1, 'high': high1, 'units': SENSORS[sensor1]['units'],
'color': SENSORS[sensor1]['color'], 'mode': mode1},
{'name': sensor2, 'low': low2, 'high': high2, 'units': SENSORS[sensor2]['units'],
'color': SENSORS[sensor2]['color'], 'mode': mode2}
]
# Create figure with 85% of original size (12x8 -> 10.2x6.8)
fig, ax1 = plt.subplots(figsize=(10.2, 6.8))
ax2 = ax1.twiny()
axes = [ax1, ax2]
# Check for time gap
first_sensor_files = all_profile_files[sensor1]
has_time_gap = check_time_gap(first_sensor_files, start_idx, end_idx)
# Check for noon/midnight if single profile
noon_midnight_label = None
peak_time_local = None
current_profile_idx = None
if nProfiles == 1 and start_idx < len(first_sensor_files):
try:
ds = xr.open_dataset(first_sensor_files[start_idx])
noon_midnight_label, peak_time_local = check_noon_midnight(ds)
_, _, current_profile_idx, _ = extract_profile_info(first_sensor_files[start_idx])
except Exception:
pass
# Plot each sensor
for sensor_idx, (sensor, config, ax) in enumerate(zip(selected_sensors, sensor_configs, axes)):
profile_files = all_profile_files[sensor]
if config['mode'] == 'bundle':
for i in range(start_idx, min(end_idx, len(profile_files))):
try:
ds = xr.open_dataset(profile_files[i])
sensor_data = ds[sensor].values
depth = ds['depth'].values
valid_mask = ~(np.isnan(sensor_data) | np.isnan(depth))
if np.any(valid_mask):
data_clean = sensor_data[valid_mask]
depth_clean = depth[valid_mask]
ax.plot(data_clean, depth_clean, '-', color=config['color'], markersize=1, alpha=0.6, linewidth=1)
except Exception:
continue
else:
depth_grid = np.linspace(0, 200, 200)
interpolated_data = []
for i in range(start_idx, min(end_idx, len(profile_files))):
try:
ds = xr.open_dataset(profile_files[i])
sensor_data = ds[sensor].values
depth = ds['depth'].values
valid_mask = ~(np.isnan(sensor_data) | np.isnan(depth))
if np.any(valid_mask) and len(depth[valid_mask]) > 1:
depth_clean = depth[valid_mask]
data_clean = sensor_data[valid_mask]
sort_idx = np.argsort(depth_clean)
depth_sorted = depth_clean[sort_idx]
data_sorted = data_clean[sort_idx]
interp_data = np.interp(depth_grid, depth_sorted, data_sorted, left=np.nan, right=np.nan)
if np.any(~np.isnan(interp_data)):
interpolated_data.append(interp_data)
except Exception:
continue
if len(interpolated_data) >= 2:
data_array = np.array(interpolated_data)
valid_counts = np.sum(~np.isnan(data_array), axis=0)
if np.any(valid_counts >= 2):
mask = valid_counts >= 2
mean = np.full(len(depth_grid), np.nan)
std = np.full(len(depth_grid), np.nan)
mean[mask] = np.nanmean(data_array[:, mask], axis=0)
std[mask] = np.nanstd(data_array[:, mask], axis=0)
valid = ~np.isnan(mean)
if np.any(valid):
ax.plot(mean[valid], depth_grid[valid], '-', color='black', linewidth=3)
ax.plot((mean + std)[valid], depth_grid[valid], '-', color='black', linewidth=1, alpha=0.7)
ax.plot((mean - std)[valid], depth_grid[valid], '-', color='black', linewidth=1, alpha=0.7)
elif len(interpolated_data) == 1:
data_array = np.array(interpolated_data)
mean = data_array[0]
valid = ~np.isnan(mean)
if np.any(valid):
ax.plot(mean[valid], depth_grid[valid], '-', color='black', linewidth=3)
# Plot annotations if enabled
if annotation_enabled and annotation_df is not None and nProfiles == 1 and current_profile_idx is not None:
sensor_annotations = annotation_df[
(annotation_df['shard'] == sensor) &
(annotation_df['profile'] == current_profile_idx)
]
for _, row in sensor_annotations.iterrows():
try:
depth_val = row.get('depth', 180)
if pd.isna(depth_val):
depth_val = 180
value_val = row.get('value', np.nan)
text_val = row.get('text', '')
if pd.notna(text_val) and text_val:
if pd.notna(value_val):
ax.text(value_val, depth_val, text_val, fontsize=10, ha='center')
else:
if pd.isna(value_val):
continue
color_val = row.get('color', config['color'])
if pd.isna(color_val):
color_val = config['color']
markersize_val = row.get('markersize', 9)
if pd.isna(markersize_val):
markersize_val = 9
opacity_val = row.get('opacity', 1.0)
if pd.isna(opacity_val):
opacity_val = 1.0
ax.plot(value_val, depth_val, 'o', color=color_val,
markersize=markersize_val, alpha=opacity_val)
except Exception as e:
print(f"Error rendering annotation: {e}")
# Set up axes
ax.set_xlabel(f'{config["name"].capitalize()} ({config["units"]})', fontsize=12, color=config['color'])
ax.set_xlim(config['low'], config['high'])
ax.tick_params(axis='x', labelcolor=config['color'])
if sensor_idx == 1:
ax.xaxis.set_label_position('top')
# Set y-axis
ax1.set_ylabel('Depth (m)', fontsize=12)
ax1.set_ylim(200, 0)
ax1.grid(True, alpha=0.3)
# Add Time Gap warning
if has_time_gap:
ax1.text(0.95, 0.05, 'Time Gap', transform=ax1.transAxes,
fontsize=20, fontweight='bold', ha='right', va='bottom',
bbox=dict(boxstyle='round', facecolor='white', edgecolor='black', linewidth=2))
# Add NOON/MIDNIGHT label
if noon_midnight_label:
label_text = f"{noon_midnight_label}\n{peak_time_local.strftime('%H:%M:%S')}"
ax1.text(0.95, 0.15, label_text, transform=ax1.transAxes,
fontsize=20, fontweight='bold', ha='right', va='bottom')
# Title
if len(first_sensor_files) > start_idx:
year, doy, profile_idx, profile_num = extract_profile_info(first_sensor_files[start_idx])
if nProfiles == 1:
title = f'{year}-{doy:03d}-{profile_num}'
else:
last_idx = min(end_idx - 1, len(first_sensor_files) - 1)
last_year, last_doy, _, last_profile_num = extract_profile_info(first_sensor_files[last_idx])
title = f'{year}-{doy:03d}-{profile_num} to {last_year}-{last_doy:03d}-{last_profile_num}'
fig.suptitle(title, fontsize=14)
plt.tight_layout()
plt.show()
def load_annotations(b):
"""Load annotation file."""
global annotation_df, annotation_enabled
annotation_file = annotation_path.value.strip()
if not annotation_file:
print("No annotation file specified")
return
try:
file_path = Path(annotation_file).expanduser()
if not file_path.exists():
print(f"File not found: {file_path}")
return
df = pd.read_csv(file_path)
required_cols = ['shard', 'profile', 'depth', 'value', 'color', 'markersize', 'opacity', 'text']
missing_cols = [col for col in required_cols if col not in df.columns]
if missing_cols:
print(f"Missing required columns: {missing_cols}")
return
if df['shard'].isna().any() or df['profile'].isna().any():
print("Error: shard and profile fields cannot be empty")
return
annotation_df = df
annotation_enabled = not annotation_enabled
if annotation_enabled:
print(f"Annotations loaded and enabled: {len(df)} rows")
annotation_btn.description = "Annotation: ON"
else:
print("Annotations disabled")
annotation_btn.description = "Annotation: OFF"
except Exception as e:
print(f"Error loading annotations: {e}")
# Create sensor selection dropdowns
sensor_list = list(SENSORS.keys())
sensor1_dropdown = widgets.Dropdown(options=sensor_list, value='temperature', description='Sensor 1:')
sensor2_dropdown = widgets.Dropdown(options=sensor_list, value='salinity', description='Sensor 2:')
# Range sliders and mode toggle for sensor 1
low1_slider = widgets.FloatSlider(value=SENSORS['temperature']['low'], min=0, max=SENSORS['temperature']['high'],
step=SENSORS['temperature']['high']/100, description='Sensor 1 low:',
continuous_update=False, readout_format='.3f')
high1_slider = widgets.FloatSlider(value=SENSORS['temperature']['high'], min=SENSORS['temperature']['high']/2,
max=2*SENSORS['temperature']['high'], step=SENSORS['temperature']['high']/100,
description='Sensor 1 high:', continuous_update=False, readout_format='.3f')
mode1_toggle = widgets.ToggleButtons(options=['bundle', 'meanstd'], value='bundle', description='Sensor 1 mode:')
# Range sliders and mode toggle for sensor 2
low2_slider = widgets.FloatSlider(value=SENSORS['salinity']['low'], min=0, max=SENSORS['salinity']['high'],
step=SENSORS['salinity']['high']/100, description='Sensor 2 low:',
continuous_update=False, readout_format='.3f')
high2_slider = widgets.FloatSlider(value=SENSORS['salinity']['high'], min=SENSORS['salinity']['high']/2,
max=2*SENSORS['salinity']['high'], step=SENSORS['salinity']['high']/100,
description='Sensor 2 high:', continuous_update=False, readout_format='.3f')
mode2_toggle = widgets.ToggleButtons(options=['bundle', 'meanstd'], value='bundle', description='Sensor 2 mode:')
# Profile navigation sliders
nProfiles_slider = widgets.IntSlider(value=1, min=0, max=180, step=1, description='nProfiles:', continuous_update=True)
index0_slider = widgets.IntSlider(value=1, min=1, max=max_profiles, step=1, description='index0:', continuous_update=True)
# Update slider ranges when sensor selection changes
def update_sensor1_sliders(change):
sensor = change['new']
low1_slider.value = SENSORS[sensor]['low']
low1_slider.min = 0
low1_slider.max = SENSORS[sensor]['high']
low1_slider.step = SENSORS[sensor]['high'] / 100
high1_slider.value = SENSORS[sensor]['high']
high1_slider.min = SENSORS[sensor]['high'] / 2
high1_slider.max = 2 * SENSORS[sensor]['high']
high1_slider.step = SENSORS[sensor]['high'] / 100
def update_sensor2_sliders(change):
sensor = change['new']
low2_slider.value = SENSORS[sensor]['low']
low2_slider.min = 0
low2_slider.max = SENSORS[sensor]['high']
low2_slider.step = SENSORS[sensor]['high'] / 100
high2_slider.value = SENSORS[sensor]['high']
high2_slider.min = SENSORS[sensor]['high'] / 2
high2_slider.max = 2 * SENSORS[sensor]['high']
high2_slider.step = SENSORS[sensor]['high'] / 100
sensor1_dropdown.observe(update_sensor1_sliders, names='value')
sensor2_dropdown.observe(update_sensor2_sliders, names='value')
# Annotation widgets
annotation_path = widgets.Text(value='', placeholder='~/argosy/annotation.csv', description='Annotation file:',
style={'description_width': 'initial'})
annotation_btn = widgets.Button(description='Annotation: OFF')
annotation_btn.on_click(load_annotations)
# Navigation buttons
def on_minus_minus(b):
step = max(1, nProfiles_slider.value // 2)
index0_slider.value = max(1, index0_slider.value - step)
def on_minus(b):
index0_slider.value = max(1, index0_slider.value - 1)
def on_plus(b):
index0_slider.value = min(max_profiles, index0_slider.value + 1)
def on_plus_plus(b):
step = max(1, nProfiles_slider.value // 2)
index0_slider.value = min(max_profiles, index0_slider.value + step)
btn_minus_minus = widgets.Button(description='--')
btn_minus = widgets.Button(description='-')
btn_plus = widgets.Button(description='+')
btn_plus_plus = widgets.Button(description='++')
btn_minus_minus.on_click(on_minus_minus)
btn_minus.on_click(on_minus)
btn_plus.on_click(on_plus)
btn_plus_plus.on_click(on_plus_plus)
nav_buttons = widgets.HBox([btn_minus_minus, btn_minus, btn_plus, btn_plus_plus])
annotation_box = widgets.HBox([annotation_path, annotation_btn])
# Create interactive plot with nProfiles and index0 at the end
interactive_plot = widgets.interactive(plot_bundle,
sensor1=sensor1_dropdown, sensor2=sensor2_dropdown,
low1=low1_slider, high1=high1_slider, mode1=mode1_toggle,
low2=low2_slider, high2=high2_slider, mode2=mode2_toggle,
nProfiles=nProfiles_slider, index0=index0_slider)
# Display widgets
display(interactive_plot)
display(nav_buttons)
display(annotation_box)
---------------------------------------------------------------------------
StdinNotImplementedError Traceback (most recent call last)
Cell In[1], line 38
27 SENSORS = {
28 'temperature': {'low': 7.0, 'high': 20.0, 'units': '°C', 'color': 'red'},
29 'salinity': {'low': 32.0, 'high': 34.0, 'units': 'PSU', 'color': 'blue'},
(...)
34 'backscatter': {'low': 0.0, 'high': 0.002, 'units': 'm⁻¹sr⁻¹', 'color': 'gray'}
35 }
37 # Get year range
---> 38 start_year = int(get_input_with_default("Start year (default 2015):", "2015"))
39 end_year = int(get_input_with_default("End year (default 2016):", "2016"))
41 print(f"\nScanning redux folders from {start_year} to {end_year}...")
Cell In[1], line 20, in get_input_with_default(prompt, default)
18 def get_input_with_default(prompt, default):
19 """Get user input with default value."""
---> 20 response = input(f"{prompt} ").strip()
21 return response if response else str(default)
File ~/miniconda3/envs/argo-env2/lib/python3.11/site-packages/ipykernel/kernelbase.py:1201, in Kernel.raw_input(self, prompt)
1199 if not self._allow_stdin:
1200 msg = "raw_input was called, but this frontend does not support input requests."
-> 1201 raise StdinNotImplementedError(msg)
1202 return self._input_request(
1203 str(prompt),
1204 self._parent_ident["shell"],
1205 self.get_parent("shell"),
1206 password=False,
1207 )
StdinNotImplementedError: raw_input was called, but this frontend does not support input requests.
# examine single days to identify midnight and noon profiles
import xarray as xr
from pathlib import Path
import matplotlib.pyplot as plt
import numpy as np
from datetime import datetime, timedelta
# Get temperature profiles for Jan 1, 2016 (day 1)
redux_dir = Path("~/ooi/redux/redux2016").expanduser()
temp_files = sorted(list(redux_dir.glob("*_temperature_2016_002_*.nc")))
print(f"Found {len(temp_files)} profiles for 2016-002")
if len(temp_files) > 0:
# Create very wide figure
fig, ax = plt.subplots(figsize=(24, 8))
# Collect all time and depth data
for f in temp_files:
ds = xr.open_dataset(f)
temp = ds['temperature'].values
depth = ds['depth'].values
time = ds['time'].values
# Convert time to matplotlib format
time_numeric = [(t - np.datetime64('2016-01-02T00:00:00')) / np.timedelta64(1, 'h') for t in time]
# Plot temperature as color-coded scatter
sc = ax.scatter(time_numeric, depth, c=temp, cmap='RdYlBu_r', s=1, vmin=7, vmax=20)
ax.set_xlabel('Time (hours from midnight)', fontsize=12)
ax.set_ylabel('Depth (m)', fontsize=12)
ax.set_ylim(200, 0)
ax.set_xlim(0, 24)
ax.grid(True, alpha=0.3)
ax.set_title('Temperature Profiles: 2016-002 (Jan 1)', fontsize=14)
# Add colorbar
cbar = plt.colorbar(sc, ax=ax)
cbar.set_label('Temperature (°C)', fontsize=12)
plt.tight_layout()
plt.show()
else:
print("No profiles found for 2016-001")

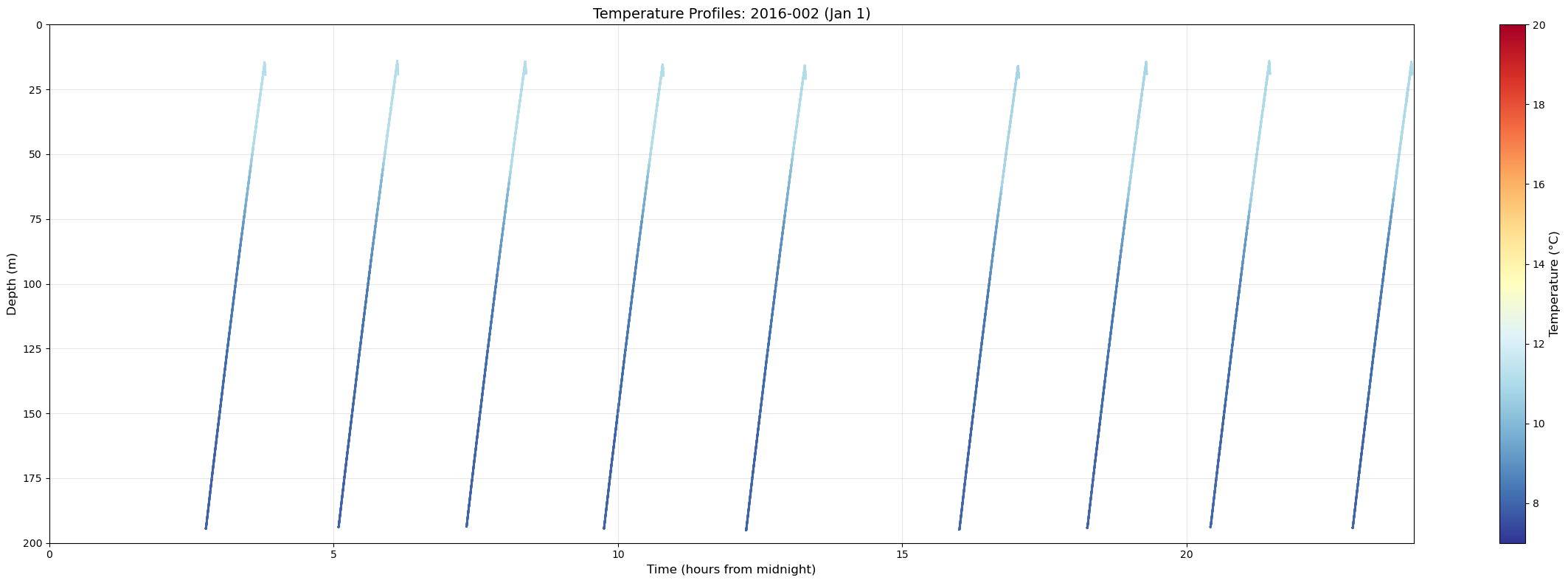

Found 9 profiles for 2016-002

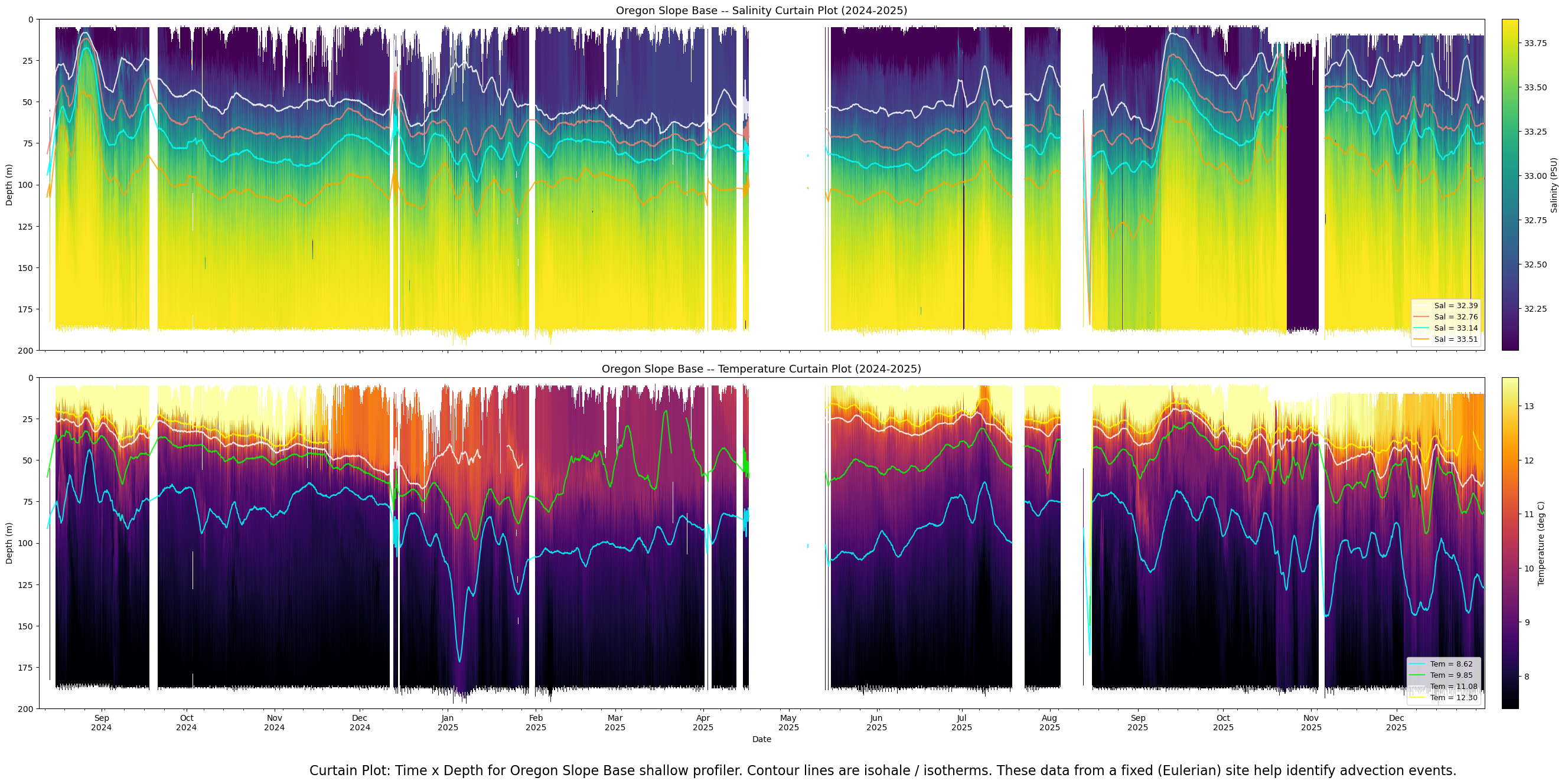

Curtain plot#
"""
Curtain plots: Salinity and Temperature for Oregon Slope Base shallow profiler.
Two stacked panels, Aug 10 2024 through Dec 31 2025.
Color encodes data over the central 90% of each sensor's dynamic range.
Contour line overlays: 4 lines per panel, low-pass filtered.
Contour lines are broken at gaps >= 3 days.
White background where no profile data exists.
Runs in a Jupyter cell (Visualizations.ipynb).
"""
import glob
import numpy as np
import xarray as xr
import matplotlib.pyplot as plt
import matplotlib.dates as mdates
from datetime import datetime
from scipy.ndimage import uniform_filter1d
# == Config ====================================================================
REDUX_DIRS = ["/home/rob/ooi/redux/redux2024", "/home/rob/ooi/redux/redux2025"]
DEPTH_MIN = 0
DEPTH_MAX = 200
DEPTH_BINS = 200
TIME_START = datetime(2024, 8, 10)
TIME_END = datetime(2025, 12, 31, 23, 59, 59)
OUTPUT_PNG = "/home/rob/argosy/chapters/curtain_salinity_2024_2025.png"
GAP_HOURS = 12
N_CONTOURS = 4
LP_WINDOW = 27
CONTOUR_GAP_DAYS = 3 # break contour lines at gaps >= this many days
SENSORS = [
{"glob": "RCA_sb_sp_salinity_*.nc", "var": "salinity", "label": "Salinity (PSU)",
"cmap": "viridis", "contour_colors": ["white", "salmon", "cyan", "orange"], "title_var": "Salinity"},
{"glob": "RCA_sb_sp_temperature_*.nc", "var": "temperature", "label": "Temperature (deg C)",
"cmap": "inferno", "contour_colors": ["cyan", "lime", "white", "yellow"], "title_var": "Temperature"},
]
depth_edges = np.linspace(DEPTH_MIN, DEPTH_MAX, DEPTH_BINS + 1)
depth_centers = 0.5 * (depth_edges[:-1] + depth_edges[1:])
gap_threshold = np.timedelta64(GAP_HOURS, 'h')
contour_gap_threshold = np.timedelta64(CONTOUR_GAP_DAYS, 'D')
bins_range = np.arange(DEPTH_BINS)
# == Helper: build curtain data for one sensor =================================
def build_curtain(shard_glob, var_name):
files = []
for d in REDUX_DIRS:
files.extend(sorted(glob.glob(f"{d}/{shard_glob}")))
n_files = len(files)
print(f"\n Found {n_files} {var_name} shard files")
report_interval = max(1, n_files // 10)
# Pass 1: data range
print(f" Pass 1: scanning {var_name} range...")
all_vals = []
for i, f in enumerate(files):
if (i + 1) % report_interval == 0:
print(f" {100 * (i + 1) // n_files}% ({i + 1}/{n_files})")
ds = xr.open_dataset(f)
v = ds[var_name].values
d = ds["depth"].values
mask = (d >= DEPTH_MIN) & (d <= DEPTH_MAX) & np.isfinite(v)
all_vals.append(v[mask])
ds.close()
all_vals = np.concatenate(all_vals)
vmin = np.nanpercentile(all_vals, 5)
vmax = np.nanpercentile(all_vals, 95)
print(f" {var_name} central 90% range: {vmin:.3f} to {vmax:.3f}")
del all_vals
# Pass 2: build columns
print(f" Pass 2: building curtain data...")
profile_columns = []
for i, f in enumerate(files):
if (i + 1) % report_interval == 0:
print(f" {100 * (i + 1) // n_files}% ({i + 1}/{n_files})")
ds = xr.open_dataset(f)
t = ds["time"].values
d = ds["depth"].values
v = ds[var_name].values
ds.close()
mask = (d >= DEPTH_MIN) & (d <= DEPTH_MAX) & np.isfinite(v)
if mask.sum() == 0:
continue
d_m, v_m, t_m = d[mask], v[mask], t[mask]
mean_time = t_m[0] + (t_m[-1] - t_m[0]) / 2
col = np.full(DEPTH_BINS, np.nan)
bin_idx = np.digitize(d_m, depth_edges) - 1
for bi in bins_range:
vals = v_m[bin_idx == bi]
if len(vals) > 0:
col[bi] = np.nanmean(vals)
profile_columns.append((mean_time, col))
print(f" Profiles with data: {len(profile_columns)}")
profile_columns.sort(key=lambda x: x[0])
return profile_columns, vmin, vmax
# == Helper: compute and filter contour lines ==================================
def compute_contours(profile_columns, vmin, vmax):
contour_values = np.linspace(vmin, vmax, N_CONTOURS + 2)[1:-1]
raw_times = np.array([pc[0] for pc in profile_columns])
raw_curtain = np.column_stack([pc[1] for pc in profile_columns])
gap_mask = np.ones(len(raw_times), dtype=bool)
for j in range(1, len(raw_times)):
if (raw_times[j] - raw_times[j - 1]) > gap_threshold:
gap_mask[j] = False
contour_filtered = {}
for sv in contour_values:
depths_at_sv = np.full(len(profile_columns), np.nan)
for j in range(len(profile_columns)):
col = raw_curtain[:, j]
valid_mask = np.isfinite(col)
if valid_mask.sum() < 2:
continue
dc = depth_centers[valid_mask]
sc = col[valid_mask]
crossings = np.where(np.diff(np.sign(sc - sv)))[0]
if len(crossings) > 0:
k = crossings[0]
s0, s1 = sc[k], sc[k + 1]
d0, d1 = dc[k], dc[k + 1]
if s1 != s0:
depths_at_sv[j] = d0 + (sv - s0) * (d1 - d0) / (s1 - s0)
filtered = depths_at_sv.copy()
seg_start = 0
for j in range(1, len(filtered) + 1):
if j == len(filtered) or not gap_mask[j]:
seg = filtered[seg_start:j]
valid = np.isfinite(seg)
if valid.sum() >= LP_WINDOW:
indices = np.arange(len(seg))
seg_interp = np.interp(indices, indices[valid], seg[valid])
seg_smooth = uniform_filter1d(seg_interp, size=LP_WINDOW)
seg_smooth[~valid] = np.nan
filtered[seg_start:j] = seg_smooth
seg_start = j
contour_filtered[sv] = filtered
return contour_values, raw_times, contour_filtered
# == Helper: insert NaN gap columns ============================================
def insert_gaps(profile_columns):
expanded = [profile_columns[0]]
gaps_found = 0
for j in range(1, len(profile_columns)):
t_prev = profile_columns[j - 1][0]
t_curr = profile_columns[j][0]
if (t_curr - t_prev) > gap_threshold:
nan_col = np.full(DEPTH_BINS, np.nan)
expanded.append((t_prev + np.timedelta64(1, 'h'), nan_col))
expanded.append((t_curr - np.timedelta64(1, 'h'), nan_col))
gaps_found += 1
expanded.append(profile_columns[j])
print(f" Time gaps > {GAP_HOURS}h: {gaps_found}, total columns: {len(expanded)}")
times = np.array([pc[0] for pc in expanded])
curtain = np.column_stack([pc[1] for pc in expanded])
return times, curtain
# == Helper: plot contour line with gap breaks =================================
def plot_contour_segments(ax, raw_times, depths, color, label):
"""Plot a contour line, breaking it at gaps >= CONTOUR_GAP_DAYS."""
valid = np.isfinite(depths)
indices = np.where(valid)[0]
if len(indices) == 0:
return
# Split into segments at time gaps
segments = []
seg_start = 0
for k in range(1, len(indices)):
i_prev = indices[k - 1]
i_curr = indices[k]
if (raw_times[i_curr] - raw_times[i_prev]) >= contour_gap_threshold:
segments.append(indices[seg_start:k])
seg_start = k
segments.append(indices[seg_start:])
# Plot each segment; only label the first one for the legend
for s_idx, seg in enumerate(segments):
if len(seg) < 2:
continue
t_mpl = mdates.date2num(raw_times[seg].astype("datetime64[us]").astype(datetime))
lbl = label if s_idx == 0 else None
ax.plot(t_mpl, depths[seg], color=color, linewidth=1.5, alpha=0.85, label=lbl)
# == Build data for both sensors ===============================================
sensor_data = []
for sensor in SENSORS:
print(f"\n{'='*60}\nProcessing {sensor['title_var']}...")
pcols, vmin, vmax = build_curtain(sensor["glob"], sensor["var"])
contour_values, raw_times, contour_filtered = compute_contours(pcols, vmin, vmax)
times, curtain = insert_gaps(pcols)
sensor_data.append({
"times": times, "curtain": curtain,
"vmin": vmin, "vmax": vmax,
"contour_values": contour_values, "raw_times": raw_times,
"contour_filtered": contour_filtered, "sensor": sensor,
})
# == Plot: two stacked panels ==================================================
fig, axes = plt.subplots(2, 1, figsize=(30, 12.8), sharex=True)
for ax, sd in zip(axes, sensor_data):
sensor = sd["sensor"]
times_mpl = mdates.date2num(sd["times"].astype("datetime64[us]").astype(datetime))
dt_half = np.diff(times_mpl) / 2
time_edges = np.empty(len(times_mpl) + 1)
time_edges[0] = times_mpl[0] - (dt_half[0] if len(dt_half) > 0 else 0.01)
time_edges[-1] = times_mpl[-1] + (dt_half[-1] if len(dt_half) > 0 else 0.01)
time_edges[1:-1] = times_mpl[:-1] + dt_half
pcm = ax.pcolormesh(time_edges, depth_edges, sd["curtain"],
cmap=sensor["cmap"], vmin=sd["vmin"], vmax=sd["vmax"],
shading="flat")
# Overlay contour lines with gap breaks
for idx, sv in enumerate(sd["contour_values"]):
fd = sd["contour_filtered"][sv]
color = sensor["contour_colors"][idx % len(sensor["contour_colors"])]
label = f"{sensor['title_var'][:3]} = {sv:.2f}"
plot_contour_segments(ax, sd["raw_times"], fd, color, label)
ax.legend(loc="lower right", fontsize=9, framealpha=0.8)
ax.set_ylim(DEPTH_MAX, DEPTH_MIN)
ax.set_xlim(mdates.date2num(TIME_START), mdates.date2num(TIME_END))
ax.set_ylabel("Depth (m)")
ax.set_title(f"Oregon Slope Base -- {sensor['title_var']} Curtain Plot (2024-2025)", fontsize=13)
ax.xaxis.set_major_locator(mdates.MonthLocator())
ax.xaxis.set_major_formatter(mdates.DateFormatter("%b\n%Y"))
ax.xaxis.set_minor_locator(mdates.WeekdayLocator(byweekday=mdates.MO))
cbar = fig.colorbar(pcm, ax=ax, pad=0.01)
cbar.set_label(sensor["label"])
axes[-1].set_xlabel("Date")
fig.set_facecolor("white")
for ax in axes:
ax.set_facecolor("white")
plt.figtext(0.5, -0.03,
"Curtain Plot: Time x Depth for Oregon Slope Base shallow profiler. Contour lines are isohale / isotherms. These data from a fixed (Eulerian) site help identify advection events.",
wrap=True, horizontalalignment='center', fontsize=16)
plt.tight_layout()
plt.savefig(OUTPUT_PNG, dpi=150, facecolor="white")
print(f"\nCurtain plot saved to {OUTPUT_PNG}")
============================================================
Processing Salinity...
Found 4629 salinity shard files
Pass 1: scanning salinity range...
9% (462/4629)
19% (924/4629)
29% (1386/4629)
39% (1848/4629)
49% (2310/4629)
59% (2772/4629)
69% (3234/4629)
79% (3696/4629)
89% (4158/4629)
99% (4620/4629)
salinity central 90% range: 32.012 to 33.884
Pass 2: building curtain data...
9% (462/4629)
19% (924/4629)
29% (1386/4629)
39% (1848/4629)
49% (2310/4629)
59% (2772/4629)
69% (3234/4629)
79% (3696/4629)
89% (4158/4629)
99% (4620/4629)
Profiles with data: 4629
Time gaps > 12h: 25, total columns: 4679
============================================================
Processing Temperature...
Found 4629 temperature shard files
Pass 1: scanning temperature range...
9% (462/4629)
19% (924/4629)
29% (1386/4629)
39% (1848/4629)
49% (2310/4629)
59% (2772/4629)
69% (3234/4629)
79% (3696/4629)
89% (4158/4629)
99% (4620/4629)
temperature central 90% range: 7.395 to 13.529
Pass 2: building curtain data...
9% (462/4629)
19% (924/4629)
29% (1386/4629)
39% (1848/4629)
49% (2310/4629)
59% (2772/4629)
69% (3234/4629)
79% (3696/4629)
89% (4158/4629)
99% (4620/4629)
Profiles with data: 4629
Time gaps > 12h: 25, total columns: 4679
Curtain plot saved to /home/rob/argosy/chapters/curtain_salinity_2024_2025.png
Bundle plot animation generator#
import matplotlib.pyplot as plt
import matplotlib.animation as animation
import xarray as xr
from pathlib import Path
import pandas as pd
import numpy as np
from datetime import datetime, timedelta
from scipy.interpolate import interp1d
def get_input_with_default(prompt, default):
"""Get user input with default value."""
response = input(f"{prompt} ").strip()
return response if response else default
def load_tmld_data():
"""Load TMLD data if available."""
try:
return pd.read_csv('tmld_estimates.csv')
except FileNotFoundError:
return pd.DataFrame()
def check_time_gap(files, start_idx, end_idx):
"""Check if there's a >2 day gap between consecutive profiles."""
for i in range(start_idx, end_idx - 1):
parts1 = files[i].stem.split('_')
parts2 = files[i + 1].stem.split('_')
year1, doy1 = int(parts1[4]), int(parts1[5])
year2, doy2 = int(parts2[4]), int(parts2[5])
date1 = datetime(year1, 1, 1) + timedelta(days=doy1 - 1)
date2 = datetime(year2, 1, 1) + timedelta(days=doy2 - 1)
time_diff = (date2 - date1).days
if time_diff > 2:
return True
return False
def calculate_mean_profile(files, start_idx, end_idx):
"""Calculate mean and std profiles from bundle."""
depth_grid = np.linspace(0, 200, 201)
temp_profiles = []
for i in range(start_idx, end_idx):
try:
ds = xr.open_dataset(files[i])
temperature = ds['temperature'].values
depth = ds['depth'].values
valid_mask = ~(np.isnan(temperature) | np.isnan(depth))
if np.any(valid_mask):
temp_clean = temperature[valid_mask]
depth_clean = depth[valid_mask]
if len(temp_clean) > 1:
f = interp1d(depth_clean, temp_clean, bounds_error=False, fill_value=np.nan)
temp_interp = f(depth_grid)
# Only add if we have some valid data
if not np.all(np.isnan(temp_interp)):
temp_profiles.append(temp_interp)
except:
continue
if len(temp_profiles) < 2:
return None, None, None
temp_array = np.array(temp_profiles)
# Calculate mean and std, suppressing warnings
import warnings
with warnings.catch_warnings():
warnings.simplefilter("ignore", category=RuntimeWarning)
mean_temp = np.nanmean(temp_array, axis=0)
std_temp = np.nanstd(temp_array, axis=0, ddof=1)
# Check if we have valid data
if np.all(np.isnan(mean_temp)):
return None, None, None
return depth_grid, mean_temp, std_temp
def create_animated_bundle_file():
"""Create animated bundle plot with mean profile option."""
# Scan for populated year folders
print("Scanning for redux folders...")
available_years = []
for year in range(2014, 2027):
redux_dir = Path(f"~/ooi/redux/redux{year}").expanduser()
if redux_dir.exists():
profile_count = len(list(redux_dir.glob("*.nc")))
if profile_count > 0:
print(f" redux{year}: {profile_count} profiles")
response = get_input_with_default(f" Include {year}? [y/n] (default y):", "y").lower()
if response == 'y':
available_years.append(year)
if not available_years:
print("No years selected")
return
print(f"\nSelected years: {available_years}")
# Load all profile files from selected years
profile_files = []
for year in available_years:
redux_dir = Path(f"~/ooi/redux/redux{year}").expanduser()
year_files = sorted(list(redux_dir.glob("*.nc")))
profile_files.extend(year_files)
print(f"Total profiles loaded: {len(profile_files)}")
# Determine default date range from available files
if profile_files:
first_parts = profile_files[0].stem.split('_')
last_parts = profile_files[-1].stem.split('_')
first_year, first_doy = int(first_parts[4]), int(first_parts[5])
last_year, last_doy = int(last_parts[4]), int(last_parts[5])
default_start = datetime(first_year, 1, 1) + timedelta(days=first_doy - 1)
default_end = datetime(last_year, 1, 1) + timedelta(days=last_doy - 1)
default_start_str = default_start.strftime("%d-%b-%Y").upper()
default_end_str = default_end.strftime("%d-%b-%Y").upper()
else:
default_start_str = "01-JAN-2018"
default_end_str = "31-DEC-2018"
# Get user inputs
show_mean = get_input_with_default("Display mean profile? [y/n] (default y - shows mean):", "y").lower() == 'y'
show_tmld = get_input_with_default("Include TMLD estimate in the visualization? Default is no. [y/n]", "n").lower() == 'y'
n_profiles = int(get_input_with_default("How many profiles in the bundle? Default is 18 (two days)", "18"))
delay = float(get_input_with_default("How many seconds delay between frames? (0.05 sec):", "0.05"))
start_date = get_input_with_default(f"Start date (default {default_start_str}):", default_start_str)
end_date = get_input_with_default(f"End date (default {default_end_str}):", default_end_str)
# Parse dates
start_dt = datetime.strptime(start_date, "%d-%b-%Y")
end_dt = datetime.strptime(end_date, "%d-%b-%Y")
tmld_df = load_tmld_data() if show_tmld else pd.DataFrame()
# Filter files by date range
filtered_files = []
for file in profile_files:
parts = file.stem.split('_')
year = int(parts[4])
doy = int(parts[5])
file_date = datetime(year, 1, 1) + timedelta(days=doy - 1)
if start_dt <= file_date <= end_dt:
filtered_files.append(file)
if len(filtered_files) < n_profiles:
print(f"Only {len(filtered_files)} profiles found in date range")
return
print(f"Creating animation with {len(filtered_files)} profiles...")
display_mode = "Mean Profile" if show_mean else "Bundle"
print(f"Display mode: {display_mode}")
# Set up the figure
fig, ax = plt.subplots(figsize=(12, 8))
total_frames = len(filtered_files) - n_profiles + 1
def animate(frame):
"""Animation function."""
ax.clear()
ax.set_xlim(7, 20)
ax.set_ylim(200, 0)
ax.set_xlabel('Temperature (°C)', fontsize=12)
ax.set_ylabel('Depth (m)', fontsize=12)
ax.grid(True, alpha=0.3)
start_idx = frame
end_idx = min(start_idx + n_profiles, len(filtered_files))
if start_idx >= len(filtered_files):
return
# Check for time gap
has_time_gap = check_time_gap(filtered_files, start_idx, end_idx)
if show_mean:
# Calculate and plot mean profile
depth_grid, mean_temp, std_temp = calculate_mean_profile(filtered_files, start_idx, end_idx)
if depth_grid is not None:
ax.plot(mean_temp, depth_grid, 'b-', linewidth=3, label='Mean')
valid_mask = ~np.isnan(mean_temp) & ~np.isnan(std_temp)
ax.plot(mean_temp[valid_mask] + std_temp[valid_mask], depth_grid[valid_mask],
'b-', linewidth=1, alpha=0.5, label='+1 Std')
ax.plot(mean_temp[valid_mask] - std_temp[valid_mask], depth_grid[valid_mask],
'b-', linewidth=1, alpha=0.5, label='-1 Std')
ax.legend(loc='lower right')
else:
# Plot bundle of profiles
for i in range(start_idx, end_idx):
try:
ds = xr.open_dataset(filtered_files[i])
temperature = ds['temperature'].values
depth = ds['depth'].values
valid_mask = ~(np.isnan(temperature) | np.isnan(depth))
if np.any(valid_mask):
temp_clean = temperature[valid_mask]
depth_clean = depth[valid_mask]
ax.plot(temp_clean, depth_clean, '-', linewidth=1, alpha=0.7)
if show_tmld and not tmld_df.empty:
profile_idx = i + 1
tmld_row = tmld_df[tmld_df['profile_index'] == profile_idx]
if not tmld_row.empty and not np.isnan(tmld_row.iloc[0]['Estimated_TMLD']):
tmld_depth = tmld_row.iloc[0]['Estimated_TMLD']
tmld_temp = tmld_row.iloc[0]['temperature_at_TMLD']
if 7 <= tmld_temp <= 20:
ax.plot(tmld_temp, tmld_depth, 'ro', markersize=4, alpha=0.8)
except Exception:
continue
# Add Time Gap warning if needed
if has_time_gap:
ax.text(0.95, 0.05, 'Time Gap', transform=ax.transAxes,
fontsize=20, fontweight='bold', ha='right', va='bottom',
bbox=dict(boxstyle='round', facecolor='white', edgecolor='black', linewidth=2))
# Set title with date range
if end_idx > start_idx:
first_parts = filtered_files[start_idx].stem.split('_')
last_parts = filtered_files[end_idx-1].stem.split('_')
first_year, first_doy = int(first_parts[4]), int(first_parts[5])
last_year, last_doy = int(last_parts[4]), int(last_parts[5])
first_date = datetime(first_year, 1, 1) + timedelta(days=first_doy - 1)
last_date = datetime(last_year, 1, 1) + timedelta(days=last_doy - 1)
mode_str = " (Mean)" if show_mean else ""
tmld_status = " (TMLD)" if show_tmld and not show_mean else ""
title = f'Bundle Animation{mode_str}{tmld_status}: {first_date.strftime("%d-%b-%Y")} to {last_date.strftime("%d-%b-%Y")}'
ax.set_title(title, fontsize=14)
# Create animation
anim = animation.FuncAnimation(fig, animate, frames=total_frames,
interval=delay*1000, repeat=True, blit=False)
# Save animation to home directory
output_file = Path("~/temp_bundle_animation.mp4").expanduser()
print(f"Saving animation to {output_file}...")
try:
anim.save(str(output_file), writer='ffmpeg', fps=1/delay, dpi=100)
if output_file.exists():
file_size = output_file.stat().st_size / (1024*1024)
print(f"Animation saved successfully!")
print(f"File: {output_file}")
print(f"Size: {file_size:.1f} MB")
print(f"Frames: {total_frames}")
else:
print("Error: Output file was not created")
except Exception as e:
print(f"Error saving animation: {e}")
print("Note: ffmpeg must be installed for MP4 output")
plt.close(fig)
# Run the animation creation
create_animated_bundle_file()
import xarray as xr
import matplotlib.pyplot as plt
import ipywidgets as widgets
from IPython.display import display
from pathlib import Path
import numpy as np
# Sensor configuration
sensor_map = {1: 'temperature', 2: 'salinity', 3: 'density', 4: 'dissolvedoxygen'}
sensor_defaults = {'temperature': (7.0, 20.0), 'salinity': (32.0, 34.0),
'density': (1024.0, 1028.0), 'dissolvedoxygen': (50.0, 300.0)}
sensor_colors = {'temperature': 'red', 'salinity': 'blue',
'density': 'black', 'dissolvedoxygen': 'cyan'}
# User inputs
years_input = input("Years to include (e.g., 2023,2024) [2023,2024]: ").strip() or "2023,2024"
years = [y.strip() for y in years_input.split(',')]
n_sensors = int(input("Number of sensors (1 or 2) [2]: ").strip() or "2")
sensors = []
ranges = []
defaults = [('temperature', 1), ('salinity', 2)]
for i in range(n_sensors):
default_name, default_key = defaults[i] if i < len(defaults) else ('temperature', 1)
key = int(input(f"Sensor {i+1} key (1=temperature, 2=salinity, 3=density, 4=dissolved oxygen) [{default_key}]: ").strip() or str(default_key))
sensor = sensor_map[key]
sensors.append(sensor)
low_def, high_def = sensor_defaults[sensor]
low = input(f"{sensor} low [{low_def}]: ").strip()
high = input(f"{sensor} high [{high_def}]: ").strip()
ranges.append((float(low) if low else low_def, float(high) if high else high_def))
# Get file lists (not loading data yet)
all_files = [[] for _ in range(n_sensors)]
for year in years:
redux_folder = Path.home() / f'ooi/redux/redux{year}'
for i, sensor in enumerate(sensors):
files = sorted(redux_folder.glob(f'RCA_sb_sp_{sensor}_*.nc'))
all_files[i].extend(files)
print(f"\nFound {len(all_files[0])} profiles")
# Calculate chart ranges
if n_sensors == 1:
a, b = ranges[0]
chart_ranges = [(a, b)]
print(f"\n{sensors[0]} has range {a} to {b}; chart has range {a} to {b}.")
else:
a, b = ranges[0]
c, d = ranges[1]
chart_ranges = [(a, 2*b - a), (2*c - d, d)]
print(f"\n{sensors[0]} has range {a} to {b}; chart first x-axis has range {a} to {2*b-a} to left-justify.")
print(f"{sensors[1]} has range {c} to {d}; chart second x-axis has range {2*c-d} to {d} to right-justify.")
# Widgets
nProfiles_slider = widgets.IntSlider(min=0, max=180, value=1, description='nProfiles', continuous_update=False)
index0_slider = widgets.IntSlider(min=0, max=len(all_files[0])-1, value=0, description='index0', continuous_update=False)
btn_mm = widgets.Button(description='--')
btn_m = widgets.Button(description='-')
btn_p = widgets.Button(description='+')
btn_pp = widgets.Button(description='++')
# Plot type toggles
plot_toggles = []
for i, sensor in enumerate(sensors):
toggle = widgets.ToggleButtons(options=['bundle', 'meanstd'], value='meanstd',
description=f'{sensor}:', button_style='')
plot_toggles.append(toggle)
output = widgets.Output()
def update_plot(change=None):
with output:
output.clear_output(wait=True)
fig, ax = plt.subplots(figsize=(14 if n_sensors == 2 else 10, 8))
ax2 = ax.twiny() if n_sensors == 2 else None
idx0 = index0_slider.value
nProf = nProfiles_slider.value
idx_end = min(idx0 + nProf, len(all_files[0]))
# Time gap check - load only needed files
if idx0 > 0:
ds_prev = xr.open_dataset(all_files[0][idx0-1])
ds_curr = xr.open_dataset(all_files[0][idx0])
t_prev = ds_prev.time.values[-1]
t_curr = ds_curr.time.values[0]
gap_days = (t_curr - t_prev) / np.timedelta64(1, 'D')
if gap_days > 2:
ax.text(0.5, 0.98, 'Time Gap', transform=ax.transAxes, ha='center',
va='top', fontsize=14, color='red', weight='bold')
# Plot each sensor
axes = [ax, ax2] if n_sensors == 2 else [ax]
for i, sensor in enumerate(sensors):
plot_type = plot_toggles[i].value
if plot_type == 'bundle':
for idx in range(idx0, idx_end):
ds = xr.open_dataset(all_files[i][idx])
axes[i].plot(ds[sensor].values, ds.depth.values,
color=sensor_colors[sensor], alpha=0.3, linewidth=0.8)
else: # meanstd
all_data = []
common_depth = None
for idx in range(idx0, idx_end):
ds = xr.open_dataset(all_files[i][idx])
depth = ds.depth.values
data = ds[sensor].values
if common_depth is None:
common_depth = depth
all_data.append(np.interp(common_depth, depth, data))
if all_data:
data_array = np.array(all_data)
mean = np.nanmean(data_array, axis=0)
std = np.nanstd(data_array, axis=0)
axes[i].plot(mean, common_depth, color=sensor_colors[sensor], linewidth=2)
axes[i].fill_betweenx(common_depth, mean-std, mean+std,
color=sensor_colors[sensor], alpha=0.3)
ax.set_ylim(200, 0)
ax.set_ylabel('Depth (m)')
ax.grid(True, alpha=0.3)
ax.set_xlim(chart_ranges[0])
ax.set_xlabel(sensors[0], color=sensor_colors[sensors[0]])
ax.tick_params(axis='x', colors=sensor_colors[sensors[0]])
if n_sensors == 2:
ax2.set_xlim(chart_ranges[1])
ax2.set_xlabel(sensors[1], color=sensor_colors[sensors[1]])
ax2.tick_params(axis='x', colors=sensor_colors[sensors[1]])
ax2.xaxis.set_label_position('top')
plt.show()
def on_mm(b): index0_slider.value = max(0, index0_slider.value - nProfiles_slider.value//2)
def on_m(b): index0_slider.value = max(0, index0_slider.value - 1)
def on_p(b): index0_slider.value = min(index0_slider.max, index0_slider.value + 1)
def on_pp(b): index0_slider.value = min(index0_slider.max, index0_slider.value + nProfiles_slider.value//2)
btn_mm.on_click(on_mm)
btn_m.on_click(on_m)
btn_p.on_click(on_p)
btn_pp.on_click(on_pp)
index0_slider.observe(update_plot, 'value')
nProfiles_slider.observe(update_plot, 'value')
for toggle in plot_toggles:
toggle.observe(update_plot, 'value')
display(widgets.HBox([btn_mm, btn_m, btn_p, btn_pp]))
for toggle in plot_toggles:
display(toggle)
display(nProfiles_slider)
display(index0_slider)
display(output)
update_plot()
from collections import deque
import time
def can_expand(x, y, bacteria):
"""Check if bacterium at (x,y) can expand."""
return (x, y) in bacteria and (x+1, y) not in bacteria and (x, y+1) not in bacteria
def expand(x, y, bacteria):
"""Expand bacterium at (x,y)."""
new_bacteria = bacteria.copy()
new_bacteria.remove((x, y))
new_bacteria.add((x+1, y))
new_bacteria.add((x, y+1))
return new_bacteria
def is_cleared(bacteria, n):
"""Check if n-square is cleared (no bacteria in [0,n-1] x [0,n-1])."""
target = {(x, y) for x in range(n) for y in range(n)}
return target.isdisjoint(bacteria)
def solve_square(n, max_steps=200):
"""Try to clear n-square using BFS with progress reporting."""
start = frozenset([(0, 0)])
queue = deque([(start, [])])
visited = {start}
last_report = time.time()
max_depth = 0
states_explored = 0
while queue:
bacteria, moves = queue.popleft()
states_explored += 1
depth = len(moves)
if depth > max_depth:
max_depth = depth
# Progress report every 5 seconds
if time.time() - last_report > 5:
print(f" Progress: depth={max_depth}, states={states_explored}, queue={len(queue)}, visited={len(visited)}")
last_report = time.time()
if depth > max_steps:
continue
# Check if n-square is cleared
if is_cleared(bacteria, n):
print(f" Final: depth={depth}, states={states_explored}, visited={len(visited)}")
return True, moves
# Try expanding each bacterium
bacteria_set = set(bacteria)
for x, y in sorted(bacteria_set):
if can_expand(x, y, bacteria_set):
new_bacteria = expand(x, y, bacteria_set)
new_state = frozenset(new_bacteria)
if new_state not in visited:
visited.add(new_state)
queue.append((new_state, moves + [(x, y)]))
print(f" Final: max_depth={max_depth}, states={states_explored}, visited={len(visited)}")
return False, []
# Test each square
for n in range(1, 5):
print(f"\n{n}-square:")
start_time = time.time()
success, moves = solve_square(n, max_steps=200)
elapsed = time.time() - start_time
if success:
print(f" ✓ Cleared in {len(moves)} moves ({elapsed:.2f}s)")
if len(moves) <= 20:
print(f" Sequence: {moves}")
else:
print(f" ✗ No solution found in 200 moves ({elapsed:.2f}s)")
import time
def can_expand(x, y, bacteria):
"""Check if bacterium at (x,y) can expand."""
return (x, y) in bacteria and (x+1, y) not in bacteria and (x, y+1) not in bacteria
def expand(x, y, bacteria):
"""Expand bacterium at (x,y)."""
new_bacteria = bacteria.copy()
new_bacteria.remove((x, y))
new_bacteria.add((x+1, y))
new_bacteria.add((x, y+1))
return new_bacteria
def is_cleared(bacteria, n):
"""Check if n-square is cleared (no bacteria in [0,n-1] x [0,n-1])."""
target = {(x, y) for x in range(n) for y in range(n)}
return target.isdisjoint(bacteria)
def solve_square_dfs(n, max_depth=200):
"""Try to clear n-square using DFS with iterative deepening."""
best_solution = None
stats = {'states': 0, 'last_report': time.time()}
def dfs(bacteria, moves, depth_limit, visited):
"""Recursive DFS with depth limit."""
nonlocal best_solution
stats['states'] += 1
# Progress report every 5 seconds
if time.time() - stats['last_report'] > 5:
print(f" Progress: depth={len(moves)}/{depth_limit}, states={stats['states']}, best={len(best_solution) if best_solution else 'none'}")
stats['last_report'] = time.time()
# Check if cleared
if is_cleared(bacteria, n):
if best_solution is None or len(moves) < len(best_solution):
best_solution = moves[:]
print(f" Found solution: {len(moves)} moves")
return True
# Depth limit reached
if len(moves) >= depth_limit:
return False
# Try expanding each bacterium
for x, y in sorted(bacteria):
if can_expand(x, y, bacteria):
new_bacteria = expand(x, y, bacteria)
state = frozenset(new_bacteria)
if state not in visited:
visited.add(state)
moves.append((x, y))
if dfs(new_bacteria, moves, depth_limit, visited):
if best_solution and len(moves) == len(best_solution):
return True # Found optimal
moves.pop()
visited.remove(state)
return False
# Iterative deepening: try increasing depth limits
for depth_limit in range(1, max_depth + 1):
print(f" Trying depth limit: {depth_limit}")
stats['states'] = 0
visited = {frozenset([(0, 0)])}
if dfs({(0, 0)}, [], depth_limit, visited):
if best_solution and len(best_solution) <= depth_limit:
return True, best_solution
return False, best_solution if best_solution else []
# Test each square
for n in range(1, 5):
print(f"\n{n}-square (DFS):")
start_time = time.time()
success, moves = solve_square_dfs(n, max_depth=200)
elapsed = time.time() - start_time
if success:
print(f" ✓ Cleared in {len(moves)} moves ({elapsed:.2f}s)")
if len(moves) <= 20:
print(f" Sequence: {moves}")
else:
print(f" ✗ No solution found ({elapsed:.2f}s)")
